TL Gas Turbine up to 7 MW

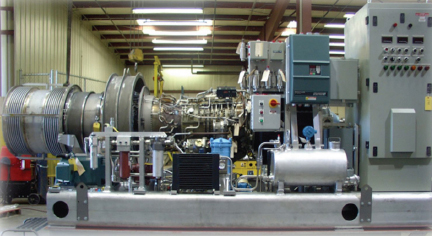

At the heart of the Lotus Energy TL-45 Turbine Power Unit is an engine that has a proven track record in the high demand aviation industry. Constant improvement is a way of life at Lotus Energy. The TL-45 is designed in cooperation with industry leading partners (Siemens, ABB, Pratt & Whitney, GE, Honeywell and Arrow) ensuring a reliable Turbine Generator that meets all the design objectives. The Lotus Energy Mission is - “Deliver cost effective power solutions with no un-scheduled downtime”. All this is backed by our 2 year 8,000 hour warranty. The Lotus Factory team will perform start up and commissioning at no additional cost.
| Performance – GE powered |
| Output |
6000 shp 4500 kW |
| SFC |
0.443 lb/shp-hr |
| Heat Rate |
8,140 Btu/ shp-hr |
| |
10,916 Btu/kWs-hr |
| |
11,520 kJ/kWs-hr |
| Exhaust Gas Flow |
35.9 lb/sec (16.5kg/sec) |
| Exhaust Temp. |
1,049º F (565º C) |
| Power Turbine Speed |
7000 RPM |
| Fuel |
Natural Gas, liquid fuels |
| Average Performance 60 Hz, 59ºF, sea level, 60% relative humidity, no inlet or exhaust losses. |
| |
|
| Performance - Generator |
| Output |
4500 kW / Max 4850 kW |
| Voltage @ 50 Hz |
6,300 – 11,000 |
| Voltage @ 60 Hz |
6,600 – 12,407 |
| Frequency |
50 or 60 Hz |
| |
|
| Shipping Dimensions Standard non Mobile units: |
| Length: |
240” |
| Width: |
96” |
| Height: |
108” |
| Weight: |
54,973 lbs. |
Enclosure
- Precision robotic welding of all assemblies
- Enclosure walls are load bearing, modular, and removable for quick access for major maintenance
- Full enclosure insulation
- Electrostatic painting and corrosion protection
- Integrated fuel tanks - diesel and dual fuel only
- Sound attenuated inlet and exhaust
GEM™ – Global Energy Management
- Global energy management GEMTM is a global energy predication and control system
- The system monitors short-term future renewable energy production at all member sites, based on the predicted energy generation capacity the system purchases thermal fuel from the open market at the lowest possible price.
- The system intelligence monitors the oil and gas market and purchases fuel for short term needs at the lowest price.
- Economic models build into the system predicates short term oil & gas prices based on current market data.
- The system autonomously starts and operates different generators at the member sites to achieve maximum cost efficiency for the operator
Electronics
- Siemens Simatic HMI access flat touch screen rugged control panel, approved for use in hazardous zones, programming by Siemens and Lotus with GEMTM interface
- Live data feed to remote monitoring and control package based on control system with redundant processor
- Lotus electronic synchronizer in paralleling applications
- Full authority Turbine digital controls
PACKAGES
DH Package – Dust and Heat
- FOD rejection module (Foreign object debris)
- Secondary lubrication filters
- High flow lubrication cycle
- Secondary fuel filtration system and external filtration skid
- High air flow enclosure venting
- Enclosure air filtration
- Generator secondary cooling cycle
- Electronic controls cooling – FDA
- Fully sealed enclosure
- Exterior control station canopy
CC Package – Cold Climate (freezing and/or wet)
- Fully insulated enclosure
- Anti-Gelling lubrication system
- Heated exterior fuel port and auxiliary heating connection
- Enclosure heater
- Battery tray warmer
- Heavy duty/ Deep cycle batteries
- Anti-icing air intake
- Anti-icing water build-up exhaust system
- Slip protection grip floors
- Extra exterior lighting
- Natural light interior lighting system
- Slopped enclosure roof for snow and water drainage
- Fully enclosed exterior management port
- Heated key lock for ice protection
- Specialized lubricants for heated parts
Noise Management Package – Various levels of sound attenuation
Paralleling Packages
Mobile Packages
Maintenance Packages
Operating Packages
